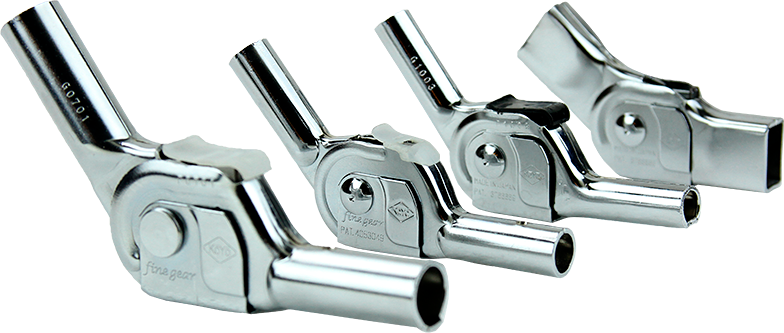

KS Gear
Our long-seller and global standard reclining gears.
You can choose an ideal one depending on the pipe size and shapes.

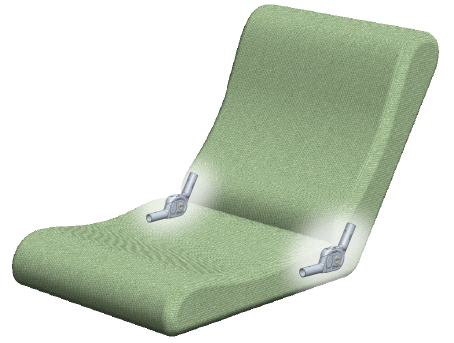

| Application | Back Rest |
|---|---|
| Pitch | 6° Pitch |
Lineup
KS-12SE
Applicable for round shaped pipe (t1.2)
*The actual products are not plated ( raw steel ).
STRENGTH:210N·m
- Standard 14 positions
- Lower 14 reverse
- Upper 7 positions
- Upper 7 reverse
- Lower 7 positions
- Lower 7 reverse

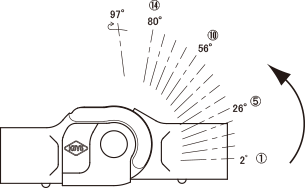

Action patterns(6degrees per pitch)
- Standard 14 positions
- Lower 14 reverse
- Upper 7 positions
- Upper 7 reverse
- Lower 7 positions
- Lower 7 reverse
Action patterns(6degrees per pitch)
For other movements, please contact us.
KS-12HG/KS-16HG
Applicable for round shaped pipe (t1.6)
*The actual products are not plated ( raw steel ).
STRENGTH:270N·m
- Standard 14 positions
- Lower 14 reverse
Action patterns(6degrees per pitch)
- Standard 14 positions
- Lower 14 reverse
Action patterns(6degrees per pitch)
For other movements, please contact us.
KS-12URG/KS-16URG
Applicable for rectangular pipe
*The actual products are not plated ( raw steel ).
STRENGTH:270N·m

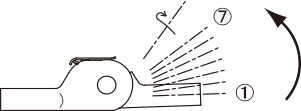

Action patterns(6degrees per pitch)
Action patterns(6degrees per pitch)
For other movements, please contact us.

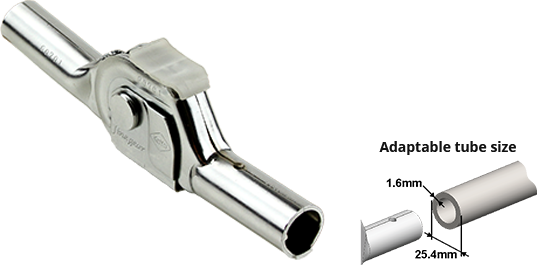

KS-AMG
The most durable KS gear, which is applicable for one inch in diameter pipe
*The actual products are not plated ( raw steel ).
STRENGTH:360N·m
- Standard 14 positions
- Lower 14 reverse
Action patterns(6degrees per pitch)
- Standard 14 positions
- Lower 14 reverse
Action patterns(6degrees per pitch)
For other movements, please contact us.
