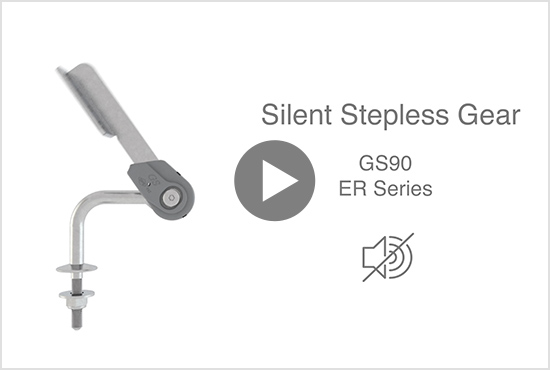

GS-ERNoiseless Stepless Fitting
- STEP
LESS
Silent, Stepless adjustable fittings bring even more comfort to functional sofas.
| Strength | 30〜100N·m |
|---|---|
| Application | Head Rest, Arm Rest |
| Pitch | Stepless |
Features of GS-ER
-
ER FUNCTION(Emergency Recovery Function)
- In emergency, the torque limiter
enables
the overload to be
released and prevents
the fitting
from a malfunction. - * Please avoid from constant ER operation
within a short time.
- In emergency, the torque limiter
-

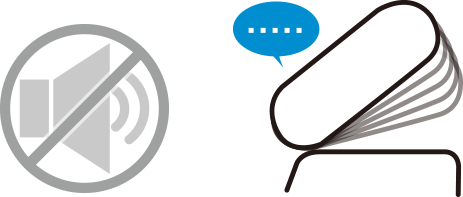

Noiseless Fitting
No click sound
-

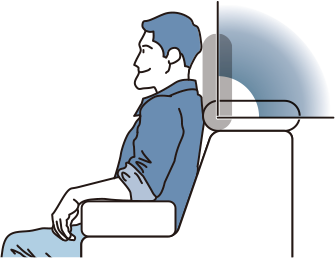

Stepless Fitting
-

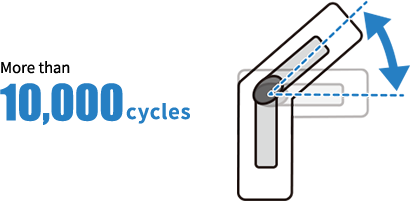

Durability
ER Function details
ER Function Test Chart
- * The upper graph shows an average of 30 samples measured at every 200 cycles.
- * Please avoid continued ER operation in a short period of time.
- * We will not guarantee ER function after using 1,000 times or more.
- * Please use it as a reference value only.
For headrests and armrests of sofas equipped with conventional fittings,
loads higher than expected will potentially impair the performance
of functional sofas.
Product lineup
Standard type
Movement pattern (lock nut type)
* The starting position , and the movement pattern differe,
depends on the arm type and installation method. Please consult us.
- 48 degree
- 72 degree
- 90 degree
- 108 degree
- 120 degree
